Powerchair, Pride Jazzy Carbon HD
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Color: | |
| Quantity: | |
Add to Cart | |

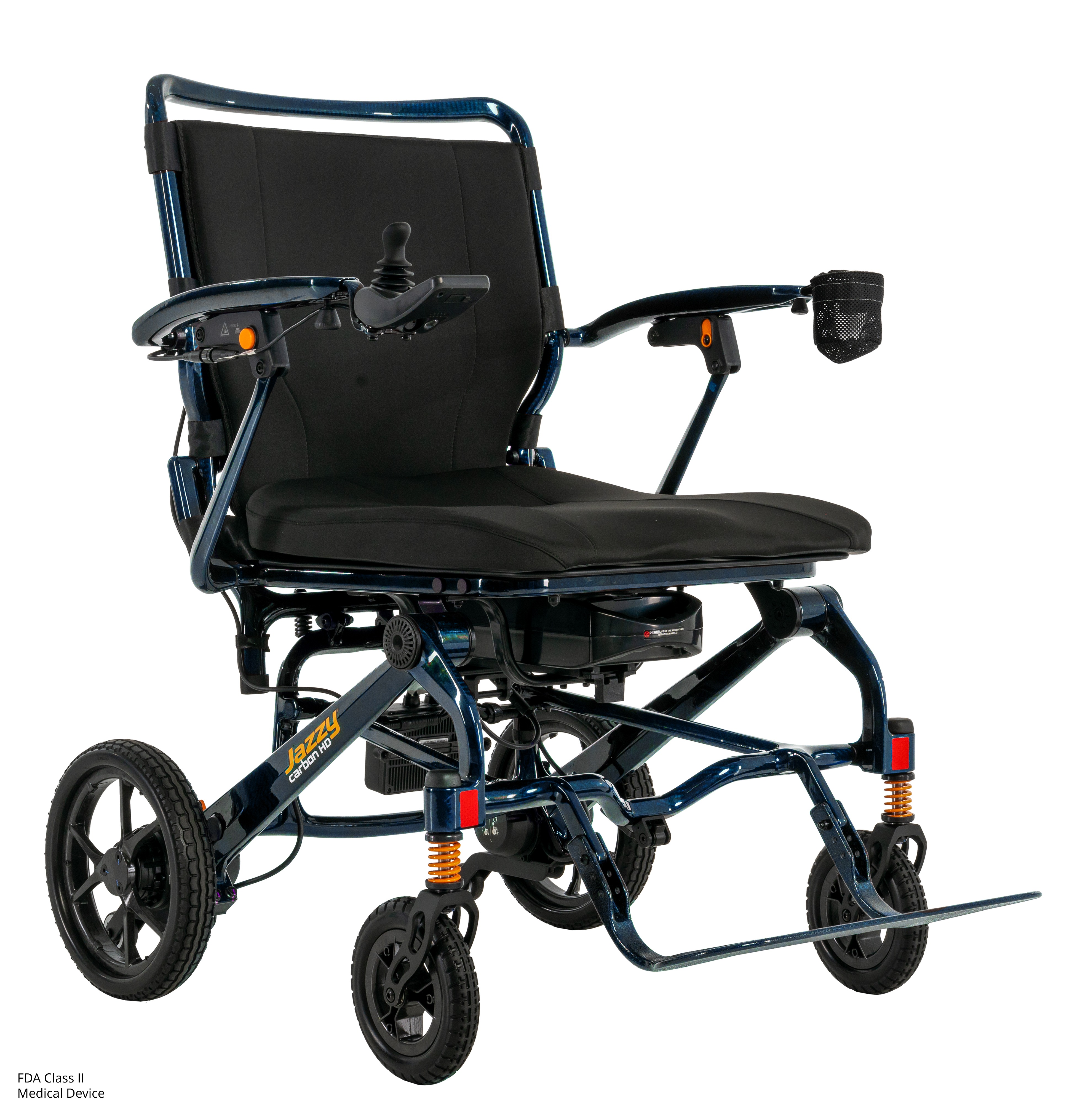

Jazzy Carbon HD
FDA Class II Medical Device
FDA Class II Medical Device
Jazzy Carbon HD
The Jazzy Carbon HD is Pride Mobility’s heavy-duty, ultra-lightweight folding power wheelchair designed for users who need durability without sacrificing portability. Weighing just 32.2 lbs without the battery yet supporting up to 400 lbs, it is engineered with a carbon-fiber frame, upgraded digital controls, and enhanced comfort features — all while offering an impressive maximum range of 12.4 miles. If looking to fly with your Jazzy Carbon HD we suggest ordering the additional smaller 12 Ah battery that is airline-compliant. Available in two bold colors, Night Sky and Black Cherry, the Jazzy Carbon HD blends performance with sleek style for daily mobility and travel.
The Jazzy Carbon HD is Pride Mobility’s heavy-duty, ultra-lightweight folding power wheelchair designed for users who need durability without sacrificing portability. Weighing just 32.2 lbs without the battery yet supporting up to 400 lbs, it is engineered with a carbon-fiber frame, upgraded digital controls, and enhanced comfort features — all while offering an impressive maximum range of 12.4 miles. If looking to fly with your Jazzy Carbon HD we suggest ordering the additional smaller 12 Ah battery that is airline-compliant. Available in two bold colors, Night Sky and Black Cherry, the Jazzy Carbon HD blends performance with sleek style for daily mobility and travel.
Jazzy Carbon HD Features:
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20" x 20" seat
- Easy fold design that locks into folded position
- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)
- Storage pocket on back of seat
- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion, and adjustable lap belt, (standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
- Available Colors: Black Cherry, Night Sky
*This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.
Jazzy Carbon HD Specifications:
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Carbon HD
|
| Weight Capacity | 400 lbs. |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 1" at motor |
| Turning Radius3 | 36.4" |
| Overall Length3 | 36.81" |
| Overall Width3 | 26.4" |
| Suspension | Full Front and Rear Suspension |
| Front Wheels | 6.5" |
| Rear Wheels | 10.6" |
| Range per Charge1,2 | Up to 12.4 Miles per charge |
| Product Weight Without Batteries3,5 | 32.2 lbs. without batteries |
| Standard Seating3 | Dimensions: 20" x 20" seat Seat sling with removable cushion |
| Folded Dimensions | 31.3" L x 26.4" W x 13" H |
| Drivetrain/Motor Output | 24V 250W Brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box Size 20 Ah |
| Battery Weight4 | 7.5 lbs. |
| Battery Charger | 2 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply. |
| Warranty | Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
| Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
